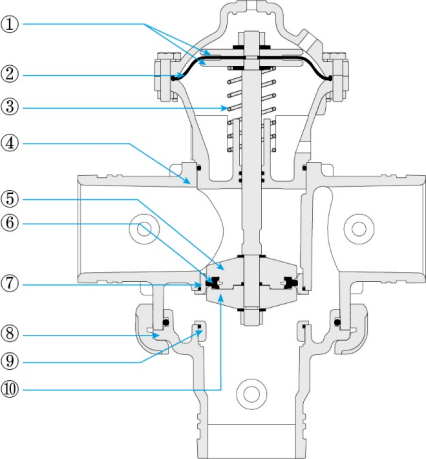

This series of valves are T-type two-position three-way valves, which are hydraulically driven diaphragm-type hydraulic control valves featuring a dual-chamber structure.

These valves are excellently designed with a short hydraulic actuation stroke, ensuring smooth and stable operation during changes in water flow direction.

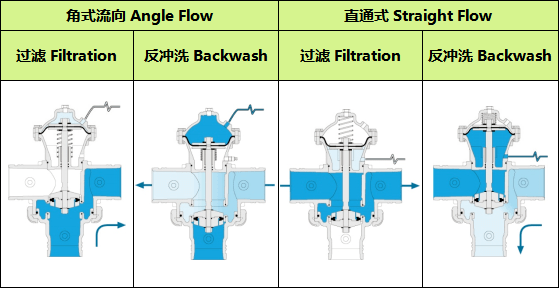

The dual-chamber structure of the valve body offers both angle flow and straight-through flow directions at the inlet, accommodating installation in various filtration system scenarios.

Smooth Operation: Short hydraulic actuation stroke and seamless flow direction switching effectively prevent mixing of clean and wastewater.

Reliable and Durable: Dual-chamber structure requires low driving pressure, effectively extending diaphragm lifespan.

Excellent Weather Resistance: Made from high-quality plastic, the valve body is corrosion-resistant and aging-resistant.

Easy Installation: Both angle flow and straight-through flow directions suit different installation scenarios.

Connection Method: Clamp connection

Working Pressure: 0.7-10 Bar

Maximum Operating Temperature: 65°C

External Pressure: 85%-100% of working pressure

Control Chamber Working Capacity: 2" is 0.13 liters, 3" is 0.34 liters, 4" is 0.55 liters

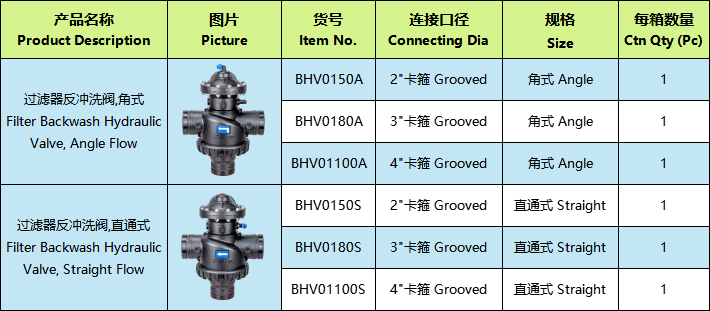

Suitable for various automatic backwash filter groups: disc filters, sand and gravel filters, screen filters.
