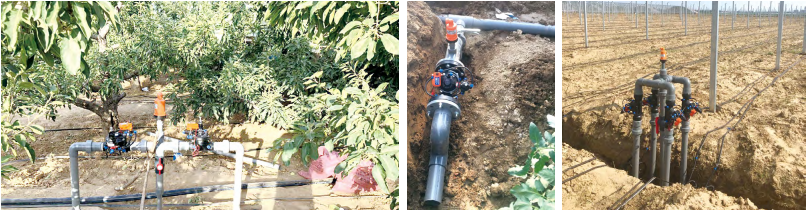

1. This solenoid head is compatible with commonly used controllers, forming an irrigation solenoid valve suitable for various irrigation automatic control systems.

2. The built-in motor-type solenoid head converts electrical signals into hydraulic control, serving as a crucial component of the control valve.

3. It offers three power modes: AC, DC, and DC pulse, with the AC and DC modes combined into one.

4. Featuring a split-structure design with a built-in diaphragm, the motor control unit is separated from the water flow channel, ensuring a long service life.

5. The large-opening flow channel design provides fast control valve response and strong anti-clogging capability.

6. Equipped with a manual control knob, it offers three selectable modes: Open, Close, and Auto.

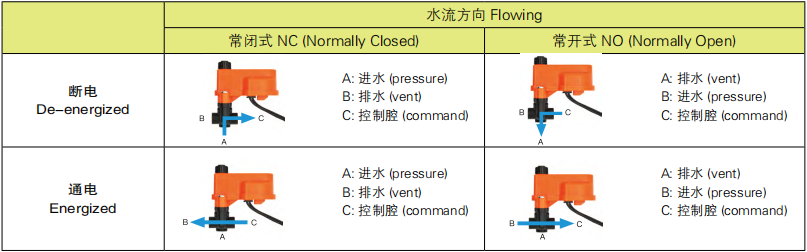

7. The three-way flow channel base allows configuration as a two-position three-way control valve.

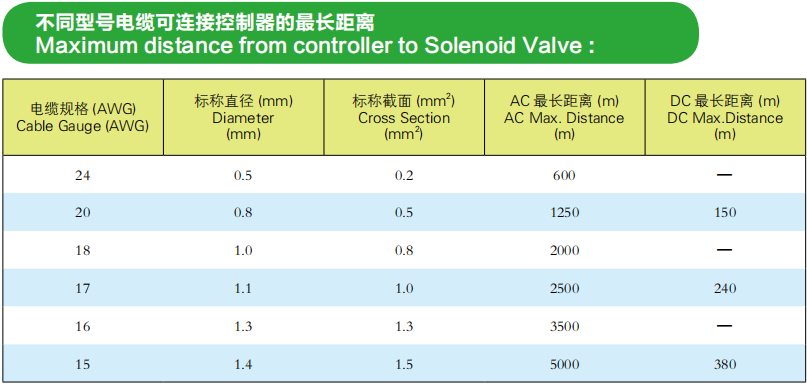

8. Low energy consumption enables long-distance control.

1. AC/DC Type: Voltage 24V (15-30V), Drive Current 90mA, Holding Current 75mA.

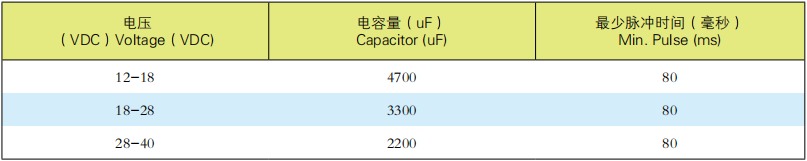

2. DC Pulse Type: Voltage 12-40V, Pulse Duration: 80-500 milliseconds.

3. Operating Pressure: 0-10 Bar.

4. Maximum Ambient Temperature: 60°C, Maximum Working Fluid Temperature: 60°C.

5. Filtration Grade: At least 80 mesh.

6. Base Port Size: 1/8" internal thread.

7. Included Wire Length: 1 meter.

8. The pulse solenoid head comes with red and black wires; red connects to the positive terminal, black to the negative terminal.
